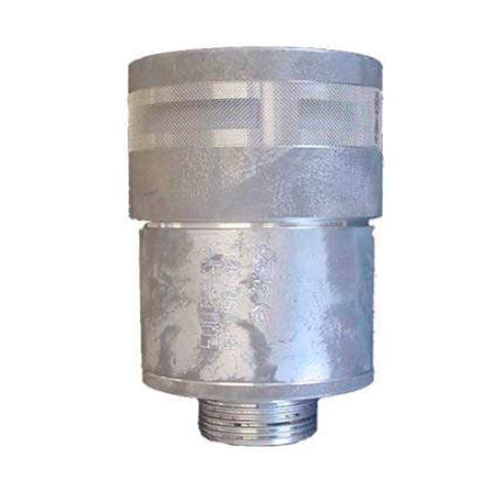

1 1/4” Internal Safety Valve

Description

Complies with UNE EN 14595 regulation.
BVQI-E certified with certificate Nº 5000661-J2-CPI.
The valve is fitted in the 10” PAF cover (internally).
1 1/4” BSP female thread.

Materials:
Body and components in treated and anodized lightweight aluminium alloy.
Springs and components in stainless steel and treated steel.
Gaskets in fluoroelastomer.
Pre-established pressures.

Functions:
Pressure relieve.
Vacuum – 2kPa.
Flame arrester.
Overturn.

Ventilation capacity
Reflief of pressure – 100m3/h to30kPa.
Vacuum – 20m3/h to 3kPa.
