Description

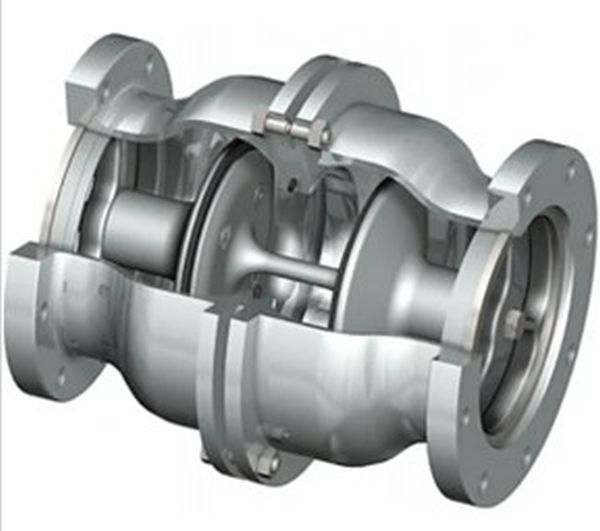

BreakAway is a safety coupling designed to be installed between the hose or loading arm and a mobile loading point (tanker, vessel, train, etc). It is made up of two symmetric parts joined by three brake pins which when intact allow the circulation of fluids. However, when the parts are separated this flow is automatically stopped by interior flaps.
How does it work?

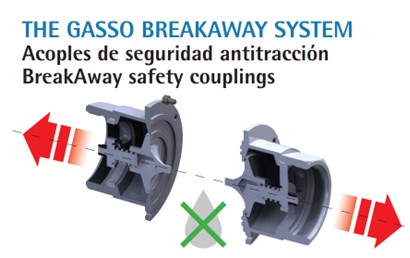

In case of accidental stretching or excessive pressure, the screws are broken before, the hose or loading arm, so that each piece of the BreakAway is attached to each end avoiding any spillage of the product: closing the end of the tanker on the one hand and that of the hose or loading arm on the other end.
BreakAway is recommended in the majority of sectors, from chemical industry to alimentary, as well as pharmacy, petrol, etc. In short, in any manipulation of highly flammable, corrosive, toxic or high risk products.
Technical data:
Aluminium breakaway in 4″
With break pins
Aluminium breakaway (Other quality on request)
Standard O-rings FPM (viton), operation temperature -40 Cº to 150 Cº
Connection: TTMA
Break force 24KN.
The Gasso Breakaway has the following certifications:
PED/2014/68/EC, ATEX 2014/34
If you wish to have another size or material, please drop us an e-mail!
