HSL 4″ Bottom Loading Arm

Description

The bottom loading arm, model HSL with flexibile hose is conform API_RP1004 and is the most popular bottom loading arm type. Due to the design it allows multiple arms to cross over each other in the loading bays during the filling process. In the end this means that multiple fluids can be filled at the same loading bay to different connections of a fuel tanker. Instead of having a droptube (top loading), this bottom loading arm has a 2200mm composite hose, special designed for bottom loading arm operations to give maximum flexibility and strength.
On customer request, we can supply buttom loading hose covers for product identification.

The working envelope, in which the adaptors on the tank truck are positioned, is described in the API_1004 RP. Regardless of the tank truck layout, as long as it is according to API_1004, the Gasso bottom loading arms can be connected.

As a standard, the Gasso bottom loading arm will be delivered with the GASSO QC-1 API coupler for a quick and dripless connection.
Upon request VSL Vapor Recovery bottom loading arm with corresponding API vapor coupler, can be supplied.

Key advantages of bottom loading

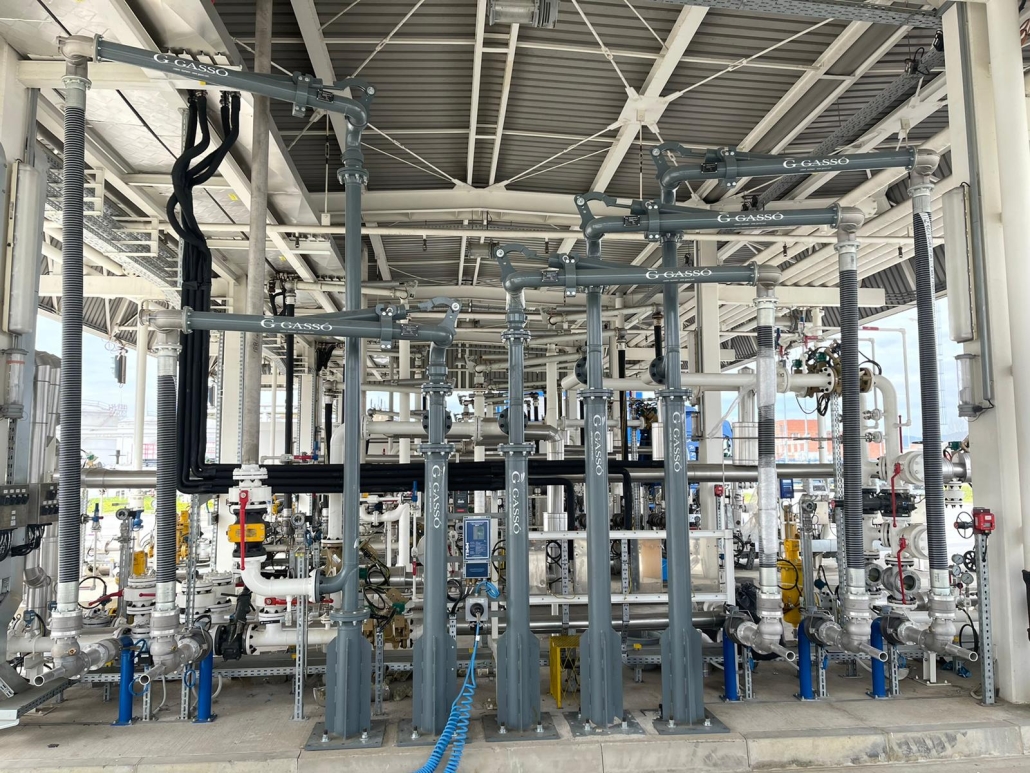

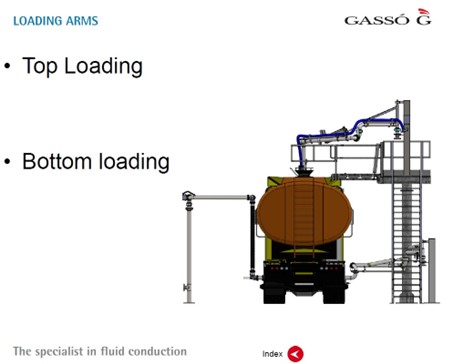

One of the major advantages of bottom loading, is that it allows to load multiple compartments with different petroleum products at the same time. Apart from the advantages regarding safety and environmental issues, bottom loading also has a number of additional benefits:
– Operator safety
– Easy to handle
– 100% recovery of the vapors
– Faster truck loading
– Less expensive loading islands

Specifications
Swivels: 2-part, all factory greased for life time
Hose: Gassoflex bottom loading composite hose with standard length of 2.200mm
Flanged connections: All are flanged connections for ease of maintenance
Inlet flange connection: ANSI 150 LBS
Balancing: With linear spring as standard
End connections: With Gasso drip free QC-1 -4” API coupler conform API RP1004, standard with 5 interlocks
Sealing: Standard with Viton GFLT seals in Swivels and API coupler
Warranty: 5 year, not including wear and tear parts

Not sure if 4” is the right size for you?

NOTE: The price is per unit, if you wish to order multiple then you´ll have to add more units to your chart.
NOTE: If you wish to order more bottom loading arms, kindly check required hose lenghts for cross over possibilty.
NOTE: Shippingcosts are including packaging, this is done per unit in a woodencrate 270x70x120, grossweight 135KG.
